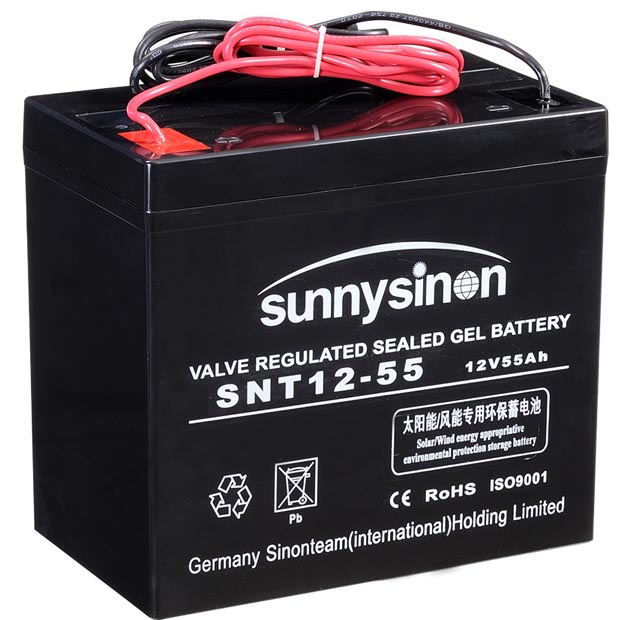

SNT12-55
SNT series solar energy special polymer microcapsule colloid accumulator
型号
标准电压
容量
外型尺寸(mm)
参考重量
输出方式
端子
连线
MODEL
V
AH
长(L)
宽(W)
高(H)
总高(TH)
KG
type
Texture of material
position
Sectional area
12V series
SNT12-4
12
4
90
70
102
108
1.5
A
CU
C
1.5mm2
SNT12-7
12
7
151
65
95
100
2.2
A
CU
F
1.5mm2
SNT12-12
12
12
152
99
95
104
4.0
A
CU
F
1.5mm2
SNT12-17
12
17
181
77
168
167
5.5
C
CU
D
2.5mm2
SNT12-20
12
20
166
126
174
181
6.0
C
CU
D
2.5mm2
SNT12-24
12
24
166
126
174
181
8.0
B
CU
D
2.5mm2
SNT12-33
12
33
195
130
155
179
10
D
Pb
C
2.5mm2
SNT12-38
12
38
197
166
175
181
12.6
B
CU
D
4.0mm2
SNT12-55
12
55
230
138
215
229
18.4
D
Pb
C
4.0mm2
SNT12-65
12
65
351
167
179
183
20.5
B
CU
D
4.0mm2
SNT12-80
12
80
329
172
214
238
26
B
CU
D
6.0mm1
SNT12-100
12
100
330
173
214
238
30
B
CU
D
6.0mm2
SNT12-120
12
120
408
174
208
237
34
B
CU
D
6.0mm2
SNT12-150
12
150
482
170
240
240
43
D
Pb
C
10.0mm2
SNT12-200
12
200
522
239
218
245
60
D
Pb
E
10.0mm2
SNT12-250
12
250
520
268
220
249
73
D
Pb
E
10.0mm2
6V series
SNT6-4
6
4
70
47
101
108
0.8
A
CU
A
1.5mm2
SNT6-7
6
7
151
34
94
103
1.4
A
CU
C
1.5mm2
SNT6-12
6
12
151
50
94
103
2.2
A
CU
C
2.5mm2
SNT6-100
6
100
195
170
207
232
15
D
Pb
A
6mm2
SNT6-200
6
200
323
178
226
255
29
D
Pb
A
10mm2
2V series
SNT2-100
2
100
171
72
205
225
6
D
Pb
A
According to use requirements
SNT2-200
2
200
172
110
329
351
13.5
B
CU
G
SNT2-300
2
300
170
150
328
351
19.5
B
CU
G
SNT2-400
2
400
211
176
329
367
28
B
CU
L
SNT2-500
2
500
241
172
331
366
32
B
CU
L
SNT2-800
2
800
410
175
330
365
55
B
CU
I
SNT2-1000
2
1000
475
175
328
365
65
B
CU
I
SNT2-1500
2
1500
401
351
341
378
98
B
CU
J
SNT2-2000
2
2000
491
351
344
383
132
B
CU
K
SNT2-3000
2
3000
712
353
341
382
198
B
CU
K
(1) the standard capacity (10 hour rate) is the average value measured at 25 degrees Celsius, and can be achieved by charging and discharging cycles within 3 times
(2) the total height refers to the height of the battery terminals
Range of use
• Small power supply: 10-100W ranging from remote power free areas, such as plateau, islands, pastoral areas, border guards and other military and civilian living electricity, such as lighting, television, radio recorders, etc..
• 3-5KW home rooftop grid connected generation system.
• photovoltaic pump: solve the no electricity area of deep well drinking, irrigation.
• traffic areas: such as the pharos, traffic / railway signal lamp, traffic warning signs / street lamp, high-altitude obstacle lamp, highway / railway wireless telephone booth unattended power station etc..
• communications / Communications: solar unmanned microwave relay stations, fiber optic cable maintenance stations, broadcast / communication / paging power systems, rural carrier telephony, photovoltaic systems, small communications machines, soldier GPS power supplies, etc..
• petroleum, marine and meteorological areas: oil pipelines and reservoir gates, cathodic protection, solar power systems, oil drilling platforms, life and emergency power supplies, marine testing equipment, meteorological / hydrographic observation equipment, etc..
• Family lamp power: such as courtyard lamp, street lamp, portable lamp, camping lamp, lamp, lamp, fishing and climbing a black light lamp, tapping lamps, energy saving lamps.
• photovoltaic power plants: 10KW-50MW independent photovoltaic power station, scenic (firewood) complementary power station, a variety of large parking stations, charging stations, etc..
• solar power construction: combining solar power with building materials enables future large buildings to be self powered
• satellites, spacecraft, space solar power plants, etc...
