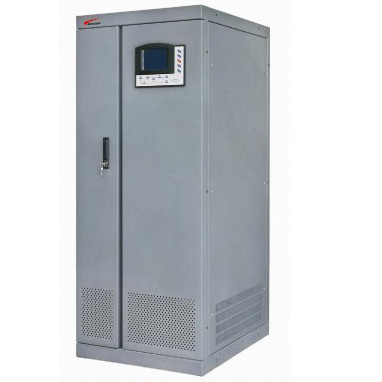

Sinonteam power frequency on line UPS
|
Model |
SNCDD10K-H |
SNCDD15K-H |
SNCDD20K-H |
SNCDD30K-H |
SNCDD40K-H |
SNCDD60K-H |
|
|
input |
Voltage |
Three-phase 380V/110V + 25% |
|||||
|
frequency |
50Hz±10% |
||||||
|
output |
Voltage |
Three-phase 380VAC + 1% |
|||||
|
frequency |
50Hz±0.05% |
||||||
|
wave form |
Pure sine wave, distortion less than 2.5% |
||||||
|
power |
10KVA/8KW |
15KVA/12KW |
20KVA/16KW |
30KVA/24KW |
40KVA/32KW |
60KVA/48KW |
|
|
Overload capacity |
120% greater than 10 minutes, 150%, no less than 20 seconds |
||||||
|
Battery |
Voltage |
384VDC |
|||||
|
performance |
performance |
On line zero switching |
|||||
|
noise |
≤55db |
≤58db |
|||||
|
Environmental Science |
Temperature -10 ~ 50 degrees, humidity 0 ~ 93%, no condensation |
||||||
|
Size (mm) |
800*600*1500 |
1000*600*1500 |
|||||
|
Net weight（kg) |
250 |
280 |
320 |
390 |
420 |
480 |
|
|
Model |
SNCDD80K-H |
SNCDD100K-H |
SNCDD120K-H |
SNCDD150K-H |
SNCDD200K-H |
SNCDD300K-H |
|
|
input |
Voltage |
Three-phase 380V/110V + 25% |
|||||
|
frequency |
50Hz±10% |
||||||
|
output |
Voltage |
Three-phase 380VAC + 1% |
|||||
|
frequency |
50Hz±0.05% |
||||||
|
wave form |
Pure sine wave, distortion less than 2.5% |
||||||
|
power |
80KVA/64KW |
100KVA/80KW |
120KVA/96KW |
150KVA/120KW |
200KVA/160KW |
300KVA/240KW |
|
|
Overload capacity |
120% greater than 10 minutes, 150%, no less than 20 seconds |
||||||
|
Battery |
Voltage |
384VDC |
|||||
|
performance |
performance |
On line zero switching |
|||||
|
noise |
≤60db |
≤62db |
≤65db |
||||
|
Environmental Science |
Temperature -10 ~ 50 degrees, humidity 0 ~ 93%, no condensation |
||||||
|
Size (mm) |
1000*600*1500 |
1200*800*1700 |
1500*1000*1800 |
||||
|
Net weight（kg) |
520 |
550 |
580 |
620 |
760 |
830 |
|
Product features:
1, IGBT, 20KHz, SPWM modulation, power quality technology created by more than 340 control points per wave per week.
2, special short circuit protection design, the use of special current, when the load accidentally short-circuit, the machine immediately stop power supply, than the continuous warning,
But after the short circuit is released, the INVERTER power supply is automatically restored, instead of bypassing the bypass to prevent the wire from firing.
3 parallel parallel current system, multi machine parallel replication, in order to improve the reliability of UPS and UPS troubleshooting capabilities.
4 、 the battery has no off-line test design, and can test the power supply manually or automatically when the UPS is not off-line and does not cut off the input power system,
Does not affect the operation of the equipment, improve the reliability of the battery.
5, SPAM UPS abnormal sequence history memory, with more than 500 power abnormal memory, external computer can store dry bar power message, assist engineering personnel for maintenance diagnosis, can support e-mail to send abnormal records.
6, 100% unbalance protection design, TC series uses advanced digital addressable design, the output voltage and the phase, completely free of three-phase unbalanced load, load in any phase phase, the system can continue to operate, the output voltage in the + 1%.
7, intelligent charging and management, can provide plenty of floating two charging modes were set, and within 24 hours of charging time, the alternate intelligent management system to protect the battery temperature, prolonging the service life of the battery.
In 8, CPU digital control, using multimode foot microprocessor, direct drive system, to simplify the complicated analog circuit, and calculate the percentage of UPS load, the voltage and the current using status and alarm to provide their trust.
9, the machine set dry contact signals so as to monitor the distance disc signal, RS-232 signals to RS485 or RS442.
10 、 communication interface, connect the computer and remote monitoring and troubleshooting through the network (INTERNET).
Apply to
(1) workstations (2), computers and peripherals (3), communication systems (4), process equipment (5), fire protection lighting (6), industrial applications without electricity (7), medical systems
