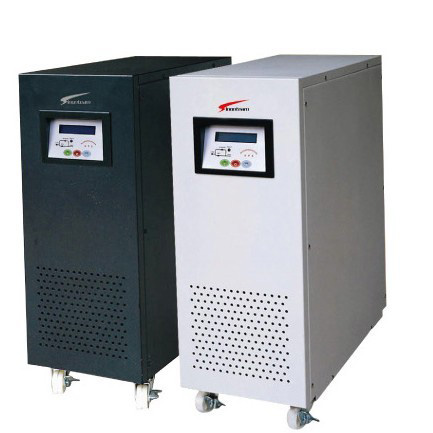

Sinonteam high frequency on line UPS SN
|
Model |
SNCR6K |
SNCR6KS |
SNCR10K |
SNCR10KS |
SN3CR10KS |
SN3CR15KS |
SN3CR20KS |
|
|
Rated voltage |
6KVA/4200W |
10KVA/7KW |
10KVA/7KW |
15KVA/10.5KVA |
20KVA/14KW |
|||
|
input |
Voltage |
176-276Vac 1P2W+G |
340-487Vac 3P4W+G |
|||||
|
Electric current |
31A(max) |
50A(max) |
50A(max) |
75A(max) |
|
|||
|
frequency |
50Hz±5% |
|||||||
|
Power factor |
Symbol EN60555-2 (0.95) |
|||||||
|
output |
Voltage |
220Vac/230Vac 2% 1P2W+G |
220Vac/230Vac 1% 1P2W+G |
|||||
|
frequency |
50Hz±5% |
|||||||
|
Electric current |
27.3A |
45A |
45A |
68A |
91A |
|||
|
Power factor |
0.7 lag |
|||||||
|
wave form |
sine wave |
|||||||
|
sine wave |
Linear load (<4%) |
Linear load (<5%) |
||||||
|
Waveform distortion |
>130%--200ms |
Battery status: >105% 10 seconds off |
||||||
|
>150%--10ms |
City power status: >130%, 1 seconds to bypass, 1 minutes off |
|||||||
|
Conversion time |
Zero interrupt |
|||||||
|
Battery type |
Sealed maintenance free lead-acid battery |
|||||||
|
Nominal voltage of external battery |
Built in battery |
240Vdc |
Built in battery |
240Vdc |
240Vdc |
240Vdc |
240Vdc |
|
|
work environment |
Operating temperature |
0-40℃ |
||||||
|
relative humidity |
0-95% |
|||||||
|
Altitude |
<1500m |
|||||||
|
Communication interface |
9Pin D Type Connector (RS232) |
|||||||
|
Size （mm） |
260X570X717 |
|||||||
|
Width *deep * high |
||||||||
|
Net weight (kg) |
89 |
45 |
91 |
47 |
39 |
55 |
55 |
|
Note: the above parameters are measured in the case of computer load. If the technical specifications change, the nameplate shall be used as the mark. The above is for reference only. Subject to change without notice.
Product features:
1 、 high frequency and IGBT conversion technology, high power density, small size, light weight;
2, intelligent CPU design, using PFC power factor correction, PFC>0.98, conversion time is zero;
3, truly pure online, output sine wave, no pollution;
4 、 strong anti load impact, with peak current and short circuit protection design;
5, complete communication monitoring function, with RS232 and SNMP (optional) interface;
6, with online maintenance design, maintenance without power outages, N+X parallel expansion technology, high reliability.
