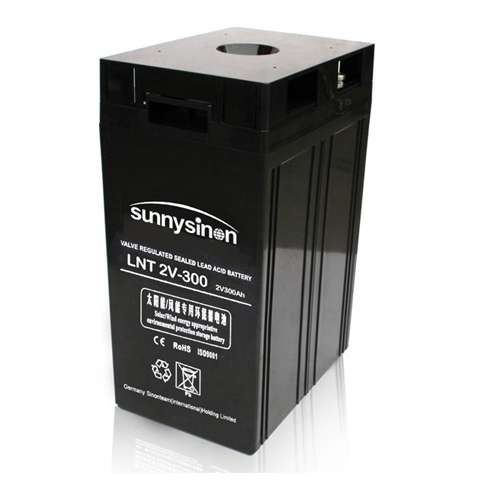

LNT-300
|
Sinonteam GFM 2V series fixed valve controlled maintenance free lead acid battery |
||||||||
|
Model |
Standard voltage |
capacity |
internal resistance |
Overall size（mm） |
Reference weight |
|||
|
MODEL |
（V） |
（AH） |
mΩ |
long(L) |
wide(W) |
high(H) |
Total height |
（KG） |
|
GFM-100 |
2 |
100 |
≤2 |
171 |
72 |
205 |
225 |
5.7 |
|
GFM-200 |
2 |
200 |
≤0.70 |
172 |
110 |
329 |
365 |
13.8 |
|
GFM-300 |
2 |
300 |
≤0.60 |
171 |
150 |
328 |
366 |
19.5 |
|
GFM-400 |
2 |
400 |
≤0.50 |
211 |
176 |
329 |
367 |
28 |
|
GFM-500 |
2 |
500 |
≤0.40 |
241 |
172 |
330 |
364 |
33 |
|
GFM-800 |
2 |
800 |
≤0.25 |
410 |
175 |
330 |
365 |
53 |
|
GFM-1000 |
2 |
1000 |
≤0.20 |
475 |
175 |
328 |
365 |
65 |
|
GFM-1500 |
2 |
1500 |
≤0.15 |
401 |
351 |
342 |
378 |
103 |
|
GFM-2000 |
2 |
2000 |
≤0.10 |
491 |
351 |
343 |
383 |
132 |
|
GFM-3000 |
2 |
3000 |
≤0.10 |
712 |
353 |
341 |
382 |
198 |
Note:
(1) the standard capacity (10 hour rate) is the average value measured at 25 degrees Celsius, and can be achieved by charging and discharging cycles within 3 times
(2) the total height refers to the height of the battery terminals
(3) the above data are for reference only. The company has the right of final interpretation
Product features
1. sealing: the battery tank cover, pole double seal design, to prevent leakage of acid, reliable safety valve to prevent external H2, O2 and dust into the battery
Department of.
2., maintenance free: H2O regeneration ability, sealing reaction efficiency is high, so in the entire battery use process without water or acid maintenance.
3., safe and reliable: no acid overflow, reliable safety valve automatic closing, explosion-proof device, so that the battery can be used throughout the process more secure
Reliable.
4. long life design: computer designed corrosion resistant lead calcium lead alloy grid, ABS corrosion resistant materials and the use of high sealing efficiency to ensure the competition
Long life of batteries.
5. high performance
(1) the weight is higher than the energy, the internal resistance is small, and the output power is high.
(2) charge discharge performance is high, self discharge control is below 2% per month (20 DEG C).
(3) the recovery performance is good. In the case of deep discharge or charger failure, the equalization charging method can be used to recover the capacity after 30 days of short circuit placement.
(4) because of internal resistance, capacity and floating charge voltage consistency, so the battery in floating state without a balanced charge.
6., temperature adaptability: can be between -40 degrees Celsius to 50 degrees Celsius, safe and safe to use.
7., the use and transportation of safe and simple: full charge factory, free electrolyte, the battery can be placed transversely, and can be carried out without dangerous materials water, land transportation.
8., cost-effective: the battery can be very high performance, long service life, very low maintenance costs, to ensure that users get a very cost-effective products.
Application range
communication system
electric power system
UPS uninterruptible power supply
Bank continuous system
Post and telecommunications,
Medical equipment
Marine equipment
control equipment
