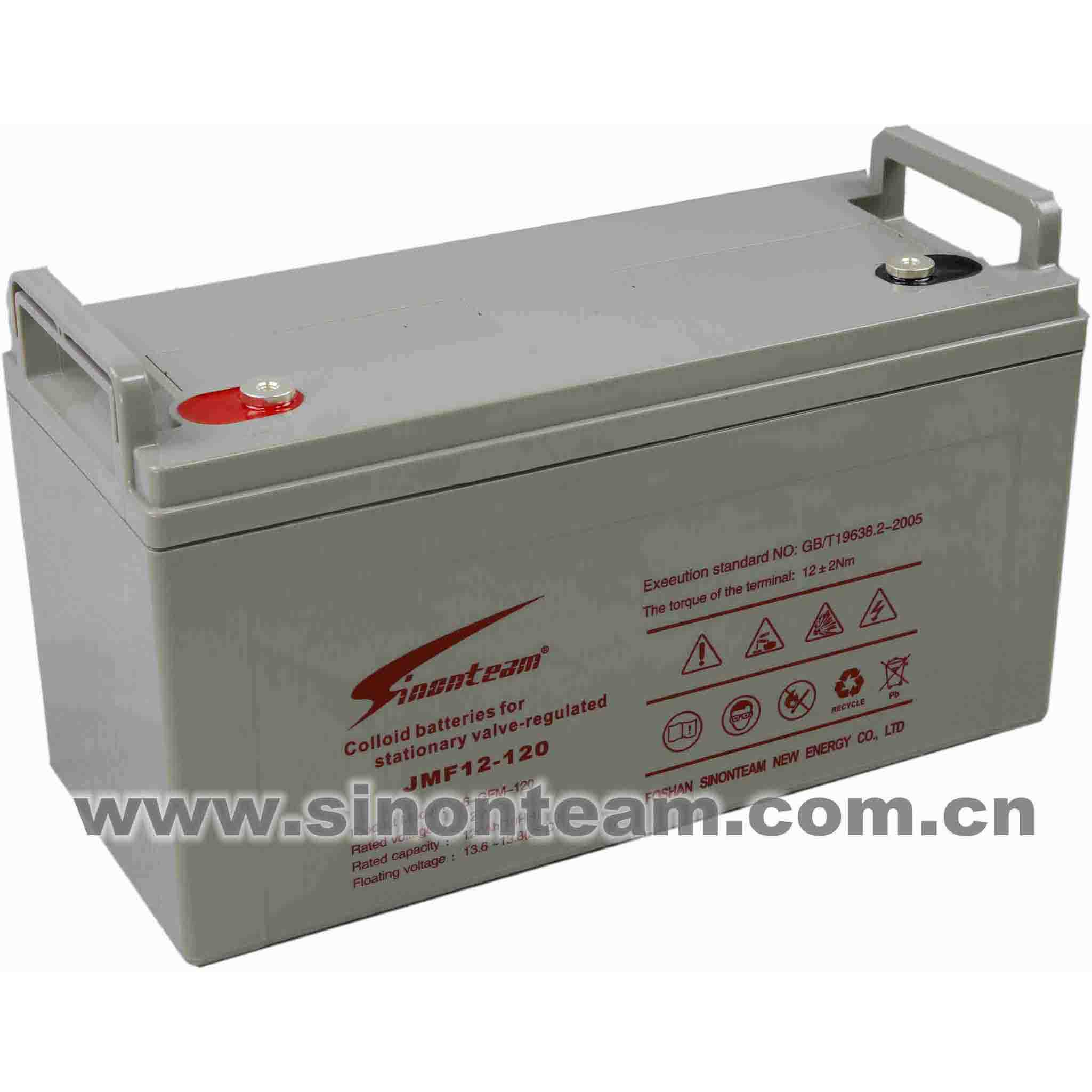

JMF12-120
|
Sinonteam JMF series valve controlled maintenance free colloid battery |
||||||||
|
Model |
Standard voltage |
capacity |
internal resistance |
Overall size（mm） |
Reference weight |
|||
|
MODEL |
（V） |
（AH） |
mΩ |
long(L) |
wide(W) |
high(H) |
Total height |
（KG） |
|
12Vseries |
||||||||
|
JMF12-12 |
12 |
12 |
≤20 |
152 |
99 |
95 |
104 |
3.5 |
|
JMF12-17 |
12 |
17 |
≤16 |
180 |
76 |
168 |
168 |
5.5 |
|
JMF12-24 |
12 |
24 |
≤11 |
165 |
126 |
175 |
182 |
8.2 |
|
JMF12-38 |
12 |
38 |
≤8.5 |
197 |
165 |
169 |
169 |
12.6 |
|
JMF12-55 |
12 |
55 |
≤8.0 |
230 |
138 |
205 |
210 |
16.5 |
|
JMF12-65 |
12 |
65 |
≤6.0 |
350 |
166 |
179 |
183 |
20.0 |
|
JMF12-100 |
12 |
100 |
≤4.4 |
408 |
174 |
208 |
237 |
32.0 |
|
JMF12-120 |
12 |
100 |
≤4 |
408 |
174 |
208 |
237 |
35.0 |
|
JFM12-150 |
12 |
150 |
≤3.5 |
482 |
170 |
240 |
240 |
43.5 |
|
JFM 12-200 |
12 |
200 |
≤3.0 |
522 |
240 |
219 |
244 |
60 |
|
JFM 12-250 |
12 |
250 |
≤2.5 |
520 |
268 |
220 |
249 |
70.5 |
Product features
1. sealing: the battery tank cover, pole double seal design, to prevent leakage of acid, reliable safety valve to prevent external H2, O2 and dust into the battery
Department of.
2., maintenance free: H2O regeneration ability, sealing reaction efficiency is high, so in the entire battery use process without water or acid maintenance.
3., safe and reliable: no acid overflow, reliable safety valve automatic closing, explosion-proof device, so that the battery can be used throughout the process more secure
Reliable.
4. long life design: computer designed corrosion resistant lead calcium lead alloy grid, ABS corrosion resistant materials and the use of high sealing efficiency to ensure the competition
Long life of batteries.
5. high performance
(1) the weight is higher than the energy, the internal resistance is small, and the output power is high.
(2) charge discharge performance is high, self discharge control is below 2% per month (20 DEG C).
(3) the recovery performance is good. In the case of deep discharge or charger failure, the equalization charging method can be used to recover the capacity after 30 days of short circuit placement.
(4) because of internal resistance, capacity and floating charge voltage consistency, so the battery in floating state without a balanced charge.
6., temperature adaptability: can be between -40 degrees Celsius to 50 degrees Celsius, safe and safe to use.
7., the use and transportation of safe and simple: full charge factory, free electrolyte, the battery can be placed transversely, and can be carried out without dangerous materials water, land transportation.
8., cost-effective: the battery can be very high performance, long service life, very low maintenance costs, to ensure that users get a very cost-effective production
Goods.
Application range
communication system
electric power system
UPS uninterruptible power supply
Bank continuous system
Post and telecommunications,
Medical equipment
Marine equipment
control equipment
