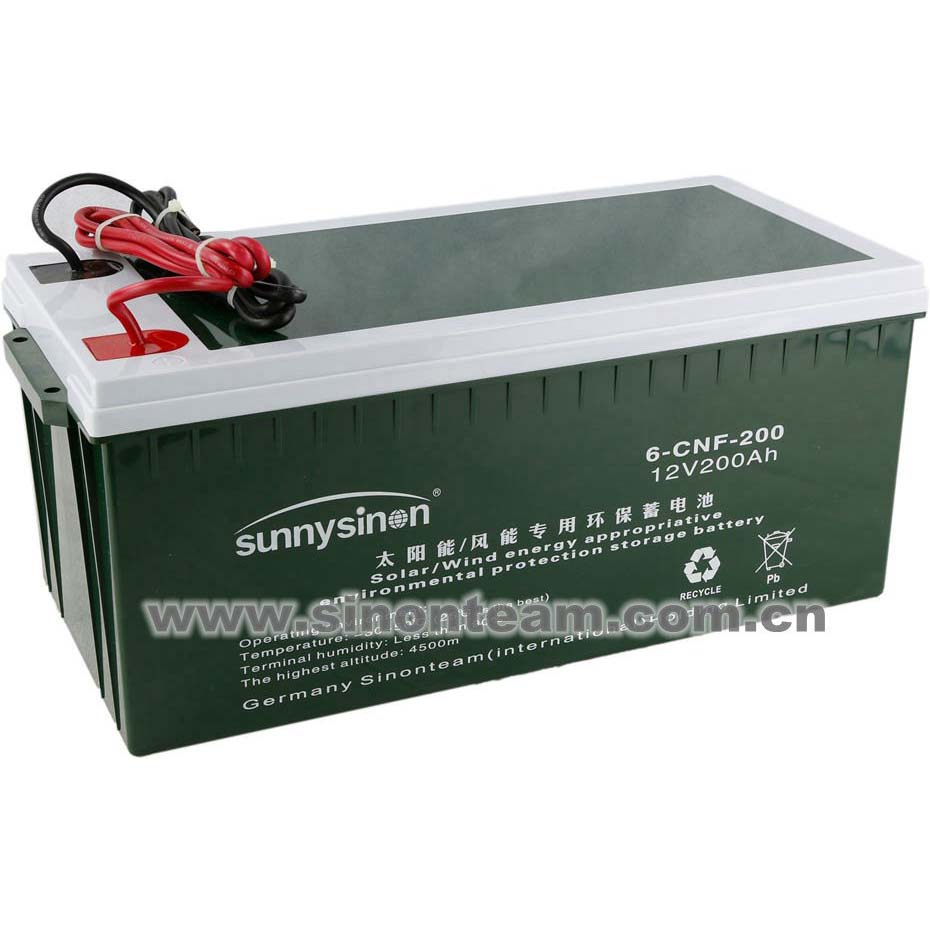

6-CNF-200

CNF series solar energy free maintenance lead-acid battery
型号	标准电压	容量	外型尺寸(mm)				参考重量	输出方式
								端子			连线
MODEL	V	AH	长(L)	宽(W)	高(H)	总高(TH)	KG	类型	材质	位置	截面积
12V series
6-CNF-4	12	4	90	70	102	108	1.5	A	CU	C	1.5mm2
6-CNF-7	12	7	151	65	95	100	2.2	A	CU	F	1.5mm2
6-CNF-12	12	12	152	99	95	104	4.0	A	CU	F	1.5mm2
6-CNF-17	12	17	181	77	167	167	5.5	C	CU	D	2.5mm2
6-CNF-20	12	20	166	126	174	181	6.0	C	CU	D	2.5mm2
6-CNF-24	12	24	166	126	174	181	8.0	D	Pb	D	2.5mm2
6-CNF-33	12	33	195	130	155	179	10	D	Pb	C	2.5mm2
6-CNF-38	12	38	197	166	175	181	12.6	D	Pb	D	4.0mm2
6-CNF-55	12	55	230	138	215	229	18.4	D	Pb	C	4.0mm2
6-CNF-65	12	65	351	167	179	183	20.5	D	Pb	D	4.0mm2
6-CNF-80	12	80	330	173	214	238	26	D	Pb	D	6.0mm2
6-CNF-100	12	100	330	173	214	238	30	D	Pb	D	6.0mm2
6-CNF-120	12	120	408	174	208	237	34	D	Pb	D	6.0mm2
6-CNF-150	12	150	482	170	240	240	43	D	Pb	C	10.0mm2
6-CNF-200	12	200	522	239	218	245	60	D	Pb	E	10.0mm2
6-CNF-250	12	250	520	268	220	249	73	D	Pb	E	10.0mm2
6Vseries
3-CNF-4	6	4	70	47	101	108	0.8	A	CU	A	1.5mm2
3-CNF-7	6	7	151	34	94	103	1.4	A	CU	C	1.5mm2
3-CNF-12	6	12	151	50	94	103	2.2	A	CU	C	2.5mm2
3-CNF-100	6	100	195	170	207	232	15	D	Pb	A	6.0mm2
3-CNF-200	6	200	323	178	226	255	29	D	Pb	A	10mm2
2V series
CNF-100	2	100	171	72	205	225	6	D	Pb	A	According  to use requirements
CNF-200	2	200	172	110	329	351	13.5	B	CU	G
CNF-300	2	300	170	150	328	351	19.5	B	CU	G
CNF-400	2	400	211	176	329	367	28	B	CU	L
CNF-500	2	500	241	172	331	366	32	B	CU	L
CNF-800	2	800	410	175	330	365	55	B	CU	I
CNF-1000	2	1000	475	171	328	365	65	B	CU	I
CNF-1500	2	1500	401	351	341	378	98	B	CU	J
CNF-2000	2	2000	491	351	344	383	132	B	CU	K
CNF-3000	2	3000	712	353	341	382	198	B	CU	K

Product brief:
CNF series of products can match the company according to the solar energy, wind energy, energy storage requires the use of complementary type batteries, can meet the demand of the market, on the basis of the original model of lead-acid battery for solar energy storage technology rectification after the launch of the lead-acid battery energy, improved product adapted to the solar system daily cycle charge discharge and long time. Deep cycle discharge requirements.
Product superiority:
• Environmental protection: battery sealing is good, no battery leakage, the battery formula does not contain environmental pollution and difficult to recycle antimony, cadmium and other metal materials, and truly ensure the environmental protection and safety of the battery.
• adaptability: wide range of use temperature (-30 - 50 degrees Celsius), the battery can be placed transversely, and equipped with terminals and connecting lines of two output methods, suitable for all types of installation
• Deep discharge performance: after deep discharge, recharging performance is strong, even after the discharge has not been added in time, the capacity can also be recharged 100%. It can meet the needs of high frequency and deep level discharge
• Long life: computer designed corrosion resistant lead calcium lead alloy grid, ABS corrosion resistant material and high sealing reaction efficiency ensure the long life of the battery.
• short circuit resistance: application of separators with ultra-high mechanical strength to avoid short circuits
• Low internal resistance and strong acceptance of charging
Range of use
• Small power supply: 10-100W ranging from remote power free areas, such as plateau, islands, pastoral areas, border guards and other military and civilian living electricity, such as lighting, television, radio recorders, etc..
• 3-5KW home rooftop grid connected generation system.
• photovoltaic pump: solve the no electricity area of deep well drinking, irrigation.
•  traffic areas: such as the pharos, traffic / railway signal lamp, traffic warning signs / street lamp, high-altitude obstacle lamp, highway / railway wireless telephone booth unattended power station etc..
• communications / Communications: solar unmanned microwave relay stations, fiber optic cable maintenance stations, broadcast / communication / paging power systems, rural carrier telephony, photovoltaic systems, small communications machines, soldier GPS power supplies, etc..
• petroleum, marine and meteorological areas: oil pipelines and reservoir gates, cathodic protection, solar power systems, oil drilling platforms, life and emergency power supplies, marine testing equipment, meteorological / hydrographic observation equipment, etc..
• Family lamp power: such as courtyard lamp, street lamp, portable lamp, camping lamp, lamp, lamp, fishing and climbing a black light lamp, tapping lamps, energy saving lamps.
• photovoltaic power plants: 10KW-50MW independent photovoltaic power station, scenic (firewood) complementary power station, a variety of large parking stations, charging stations, etc..
• solar power construction: combining solar power with building materials enables future large buildings to be self powered
• satellites, spacecraft, space solar power plants, etc..
